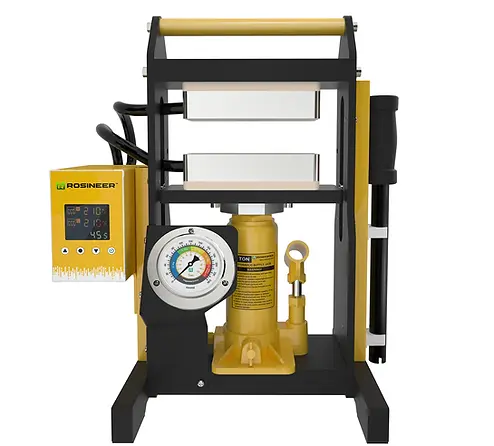

What Is a Hydraulic Rosin Press?

​

A hydraulic rosin press is a solvent less extraction machine that uses hydraulic pressure to squeeze rosin (oil) out of cannabis material like flower, hash, or kief. The plant material is usually placed in a mesh bag between parchment paper and then pressed between heated plates while pressure is applied via a hydraulic pump system.

Unlike manual presses that rely on physical strength (levers or cranks), hydraulic models use fluid mechanics — pressurized oil in a cylinder — to generate far greater force.

​

 How Hydraulic Rosin Presses Work

​

1. Heat Plates – Two heated platens warm the material to a specific temperature to soften trichomes (the resin glands).

2. Hydraulic Pressure – A hydraulic cylinder (often hand-pump driven) applies force via fluid pressure, pressing the plates together.

3. Extraction – Heat + pressure ruptures trichomes and forces rosin out of the plant material.

4. Collection – The rosin flows onto parchment paper for collection.

Some hydraulic presses use an electric pump instead of a hand pump, or even hybrid systems that combine hydraulic force with automated controls.

​

 Advantages of Hydraulic Presses

​

1. Higher Pressure & Better Yields
Hydraulic presses can generate significantly more force (measured in tons), often up to 20 + tons. This helps extract more rosin and improves overall yield compared to manual presses.

2. Consistent Force & Control
The fluid-driven system allows for more consistent, adjustable pressure through the press cycle, which improves extraction quality and repeatability.

3.  Flexibility
Hydraulic presses can often accommodate larger processing plates, making them suitable for larger batches or more demanding materials like bubble hash and dry sift.

4.  Less Physical Effort than Manual Presses
Even though some hydraulic systems use a hand pump, you still avoid the physical strength required by purely manual presses.

5.  Relative Cost Advantage vs Pneumatic
Hydraulic presses typically cost less than pneumatic (air-powered) presses while still offering high tonnage and consistent pressure.

​

 Disadvantages

​

1. More Complex Than Manual
Hydraulic presses are mechanically more complex than simple hand-crank models. Leaks or pump maintenance can occur if not carefully maintained

2. Slower Pressure Application
Hand-pumped hydraulic systems require pumping effort and time to reach full pressure, which might take longer than button-press pneumatic systems

3.  Moderate Upfront Cost
Hydraulic presses usually cost more than basic manual presses, though they are often cheaper than fully automated pneumatic models.

​

 When to Use a Hydraulic Rosin Press

​

Hydraulic presses are great for:

• Intermediate to advanced hobbyists

• Home producers who want higher yields

• Small commercial operations

• Anyone who needs more pressure and control than manual presses but doesn’t want to invest in a pneumatic press yet.

They strike a balance between affordability, performance, and pressure control — often the “sweet spot” for many users.
